LS LOW MOUNT ALTERNATOR BRACKET/TIMING COVER KIT VE/VF

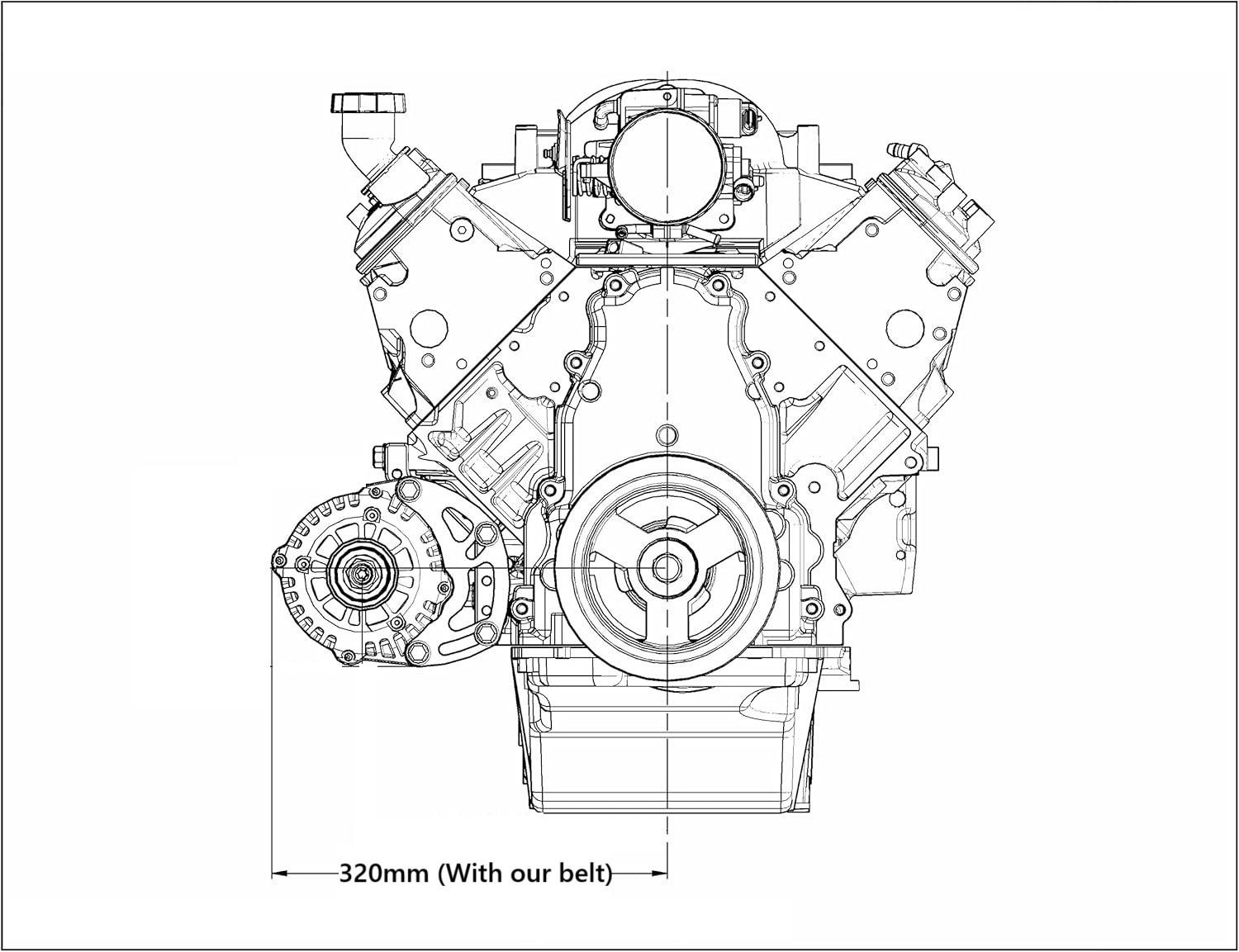

LS LOW MOUNT ALTERNATOR BRACKET/TIMING COVER KIT – VE/VF – Places the alternator to the passenger side of the crank pulley, designed to clear electric or remote water pumps only

• Compatible with LS front engine plates, but not required (145 amp or 160 amp alternators may not work in some applications when pairing with a front engine plate)
• Compatible with: VE/VF -VT/VZ Commodore Harmonic Balancer
• Alternator: Suits all LS Commodore alternators.

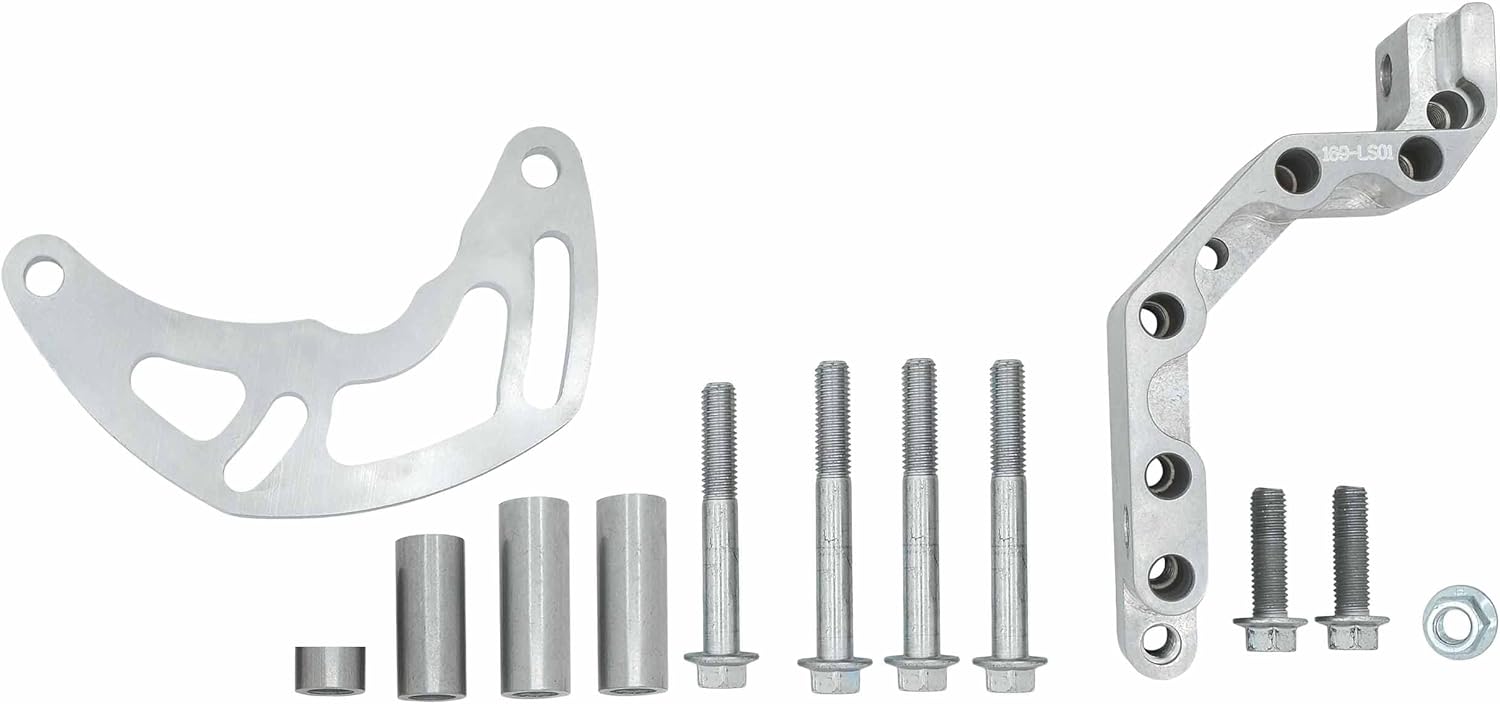

• Includes: alternator bracket and mounting hardware
• Made from aerospace-grade billet aluminium

LS LOW MOUNT ALTERNATOR BRACKET/TIMING COVER KIT – VE/VF allows you to run turbo drains back to the front cover eliminating any welding or modification to the sump.

These also provide ease of plumbing of the drain without having to navigate through the manifold or mounts.

Comes with 2 x -10 AN fittings for twin turbo applications, simply block one off with our 820-10BLK for single turbo applications.

Covers come with either front or rear sensor provisions.

NOTE: These timing covers come with front seal, gasket and bolts.

*This Timing Cover will NOT work with factory LS A/C compressors or alternator brackets in the factory location. Aftermarket DS alternator bracket sold separately (As per picture)*

* BELT INCLUDED*
