MOUNTING BRACKETS – DUAL FAN
$95.87
Mounting Brackets – Dual Fan

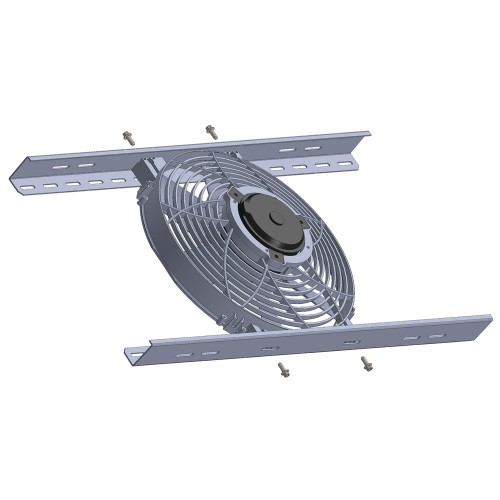

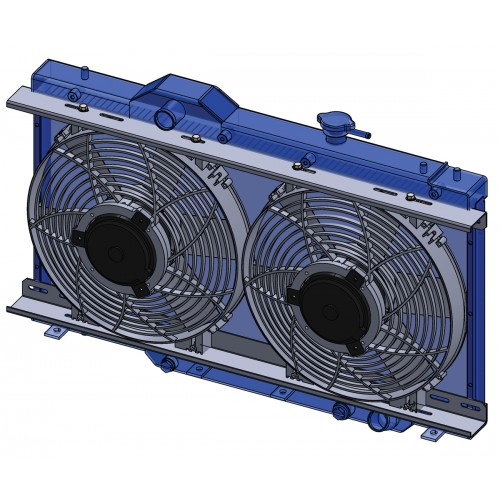

The Mounting Brackets – Dual fan Kit offers the freedom to pre-assemble the fans outside the engine bay. It also provides flexible positioning of the complete assembly on to the radiator without the need to connect through the radiator core.

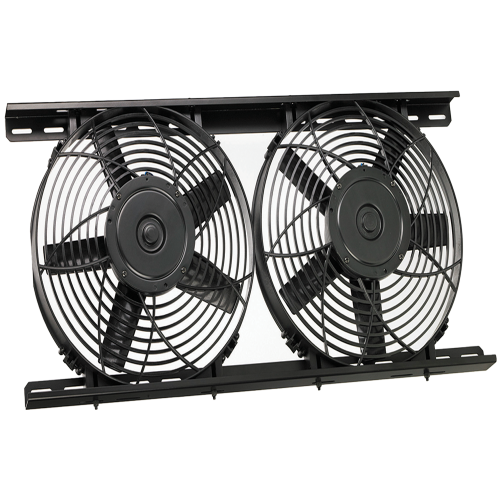

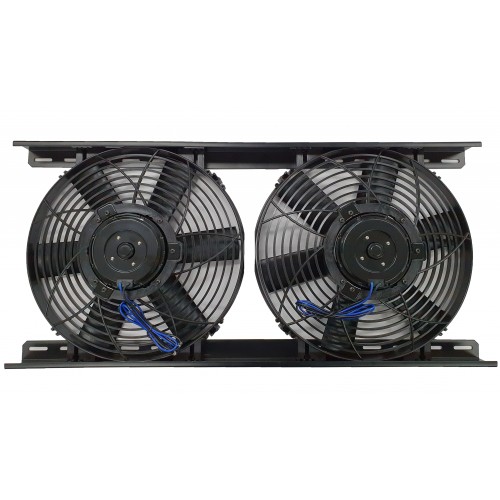

This kit is designed to either attach two Davies, Craig Thermatic® Fans from the range of 8 inch to 14 inch or a single 16 inch high flow fan.
It can also be used with non Davies, Craig Fans.
*FANS ARE NOT INCLUDED*

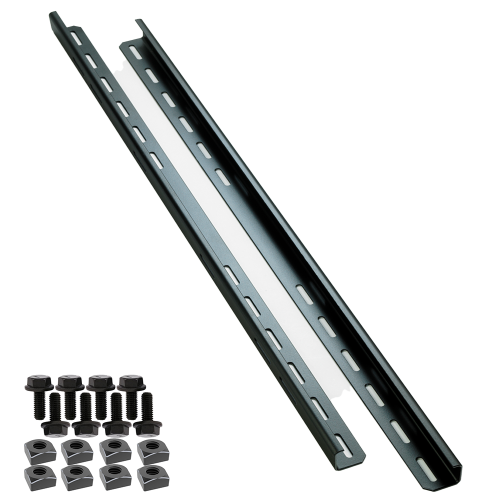

| CONTENTS | |
| PART DESCRPTION | UNITS |
|
Metal Bracket |
2 |
|
M6 x 12 Hex Flanged Screws |
8 |
|
M6 Square Nuts |
8 |
|
Instructions |
1 |
| TECHNICAL SPECIFICATIONS | |
| Length | 760mm |
| Weight | 2.15 kg
4.7 lbs |
| Height with
8″ Fan |
221mm |
| Height with
9″ Fan |
252mm |
| Height with
10″ Slim Fan |
288mm |
| Height with
12″ Fan |
300mm |
| Height with
14″ Fan |
360mm |
| Height with
16″ Fan |
410mm |
| Weight | 3.5 kg |
|---|
